RayTray™ is a protective enclosure manufactured with a durable RPVC polymer to ensure a neat and comprehensive routing method for jumper, home run, and equipment-grounding conductor cables.

RayTray™ is the product of a collaborative effort between solar installers and electrical, structural, and polymer engineers. The result is a wire management system that is simple, durable, cost effective, and ETL listed for use in PV arrays.

Specifications

Product Solar Wire Management System
Material Non-metallic RPVC polymer. UV rating: F1
Listing ETL Intertek conforms to UL Std 870. Voltage rating: 2,000 VDC
Installation Flat roofs with pitch < 8 degrees. Standing seam metal roofs
Internal Wiring Maximum of (30) #12, (30) #10, (24) #8, or (18) #6 wires/tray. RHW, USE, or PV wire.
Grounding Non-metallic RPVC polymer requires no grounding
Material Dimensions Overall height: 2", width: 8", length of tray and cap: 8', length of base: 6"
Maximum Support Interval 4'-3"
Warranty 25-year warranty against defects in materials and workmanship

logo

• Easy and quick to install
• Lower cost
• Quicker Lead Time
• Less Than A Penny Per Watt
• ETL/Intertek listing to UL Standard 870
• Now in use in over 32 states, coast to coast
• Easy and quick to install, highly customizable
• Save on labor cost
• Durable and UV resistant
• ETL listed to UL Std 870
• No roof attachments necessary
• Made in the USA



Installation

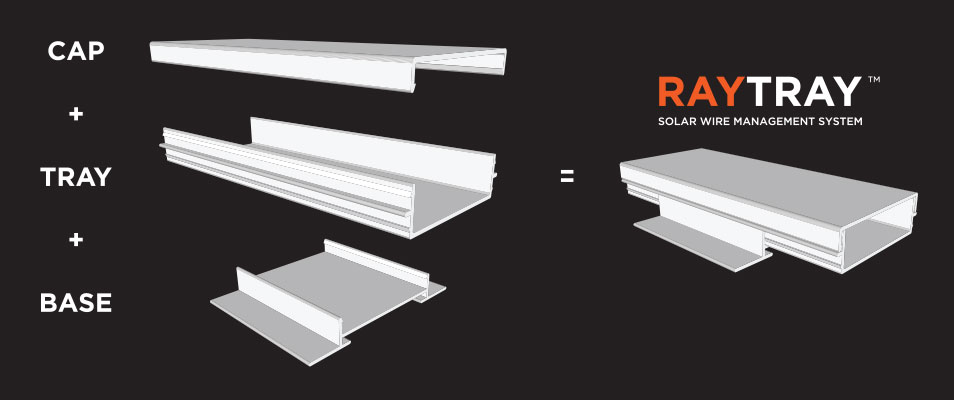

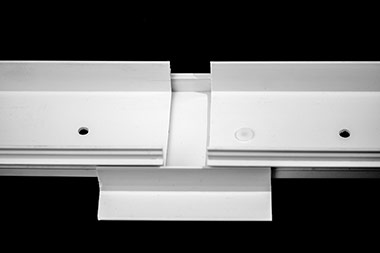

Snap and Connect

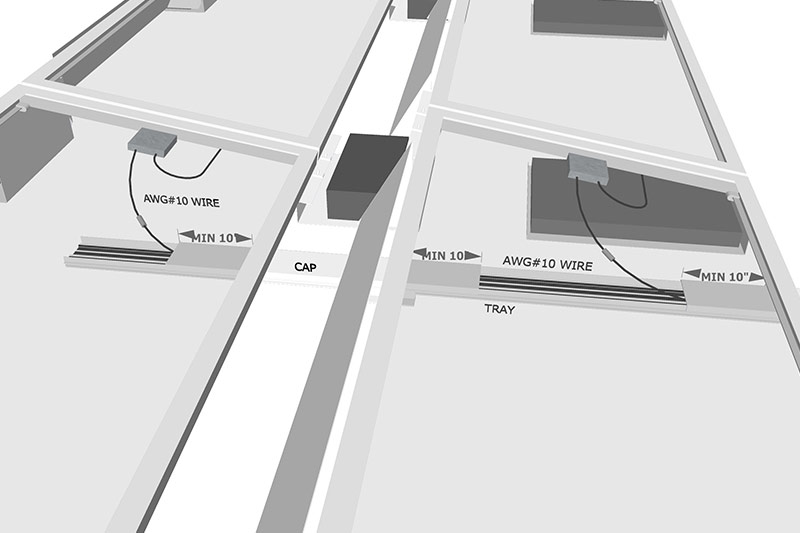

Cap and Protect

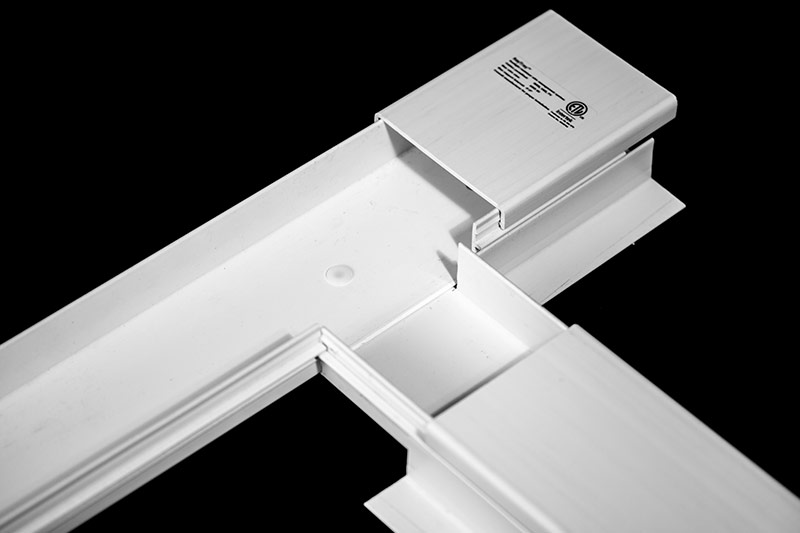

An Easy Change in Direction

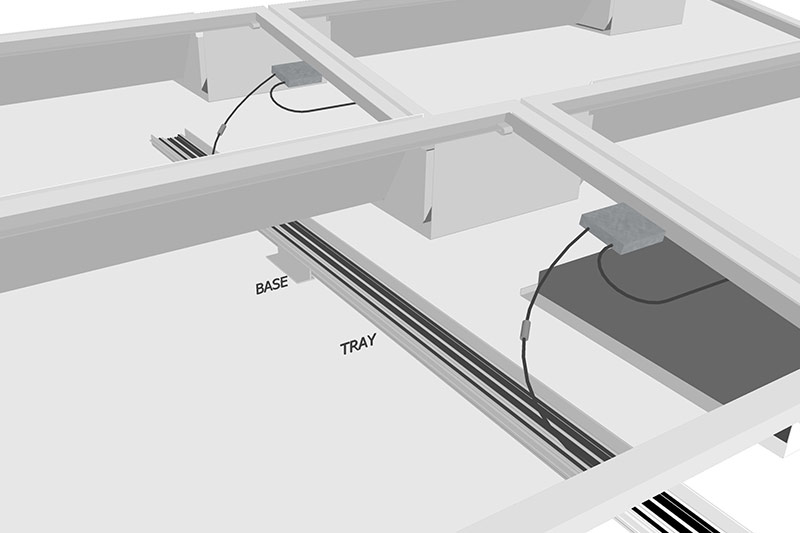

Keep Those Home Runs in Line

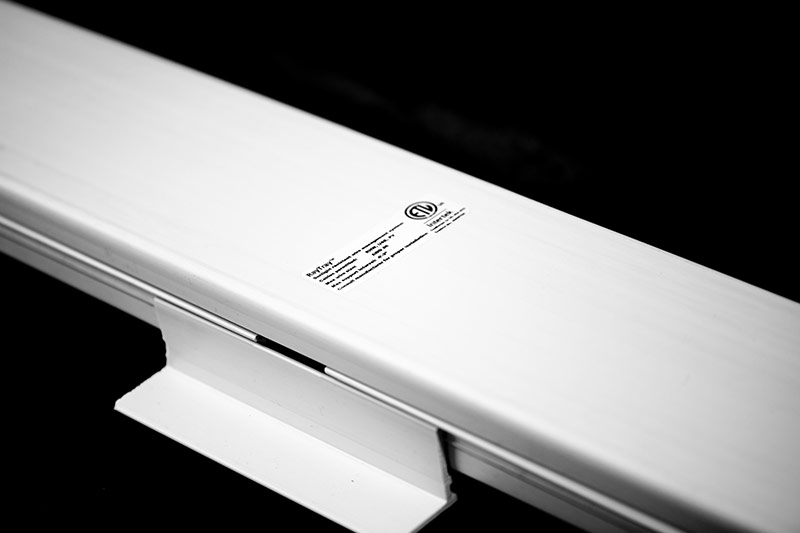

Protection Enhanced

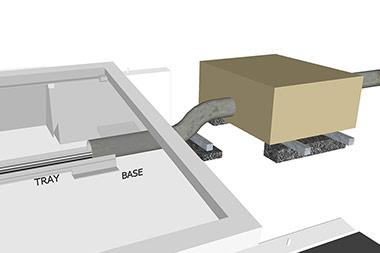

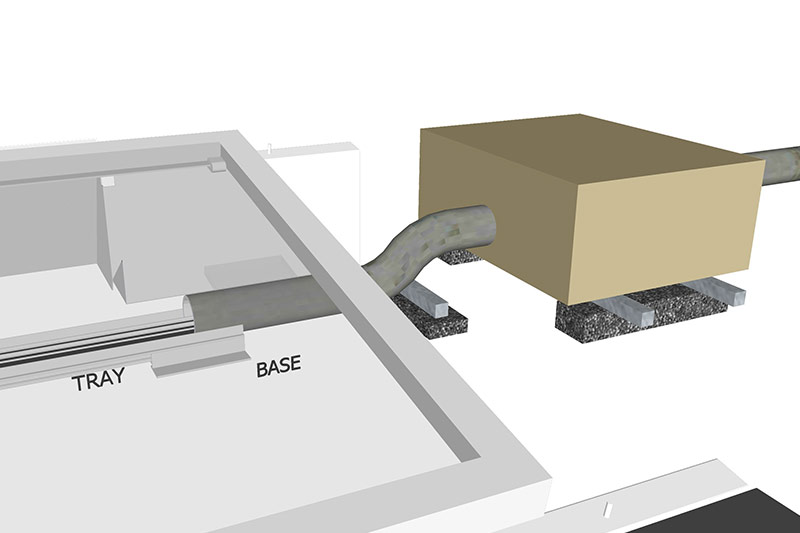

A Stellar Transition
